SEW03 Smart Electric Wheelchair
Lightweight, Foldable, Portable
| Brand: HEDY | Model: SEW03 | Controller: HEDY | Motor: Brushless |
| Battery: Lithium | Frame Material: 6061 Aluminum Alloy | Load Capacity: 120 KG | Driving Range: 20 KM |
| Speed: 6KM/H | Grade Ability: 10° | Net Weight: 20KG |
- Smart electric wheelchair
- Reclining backrest
- 8.5" flat free rear wheels
- Advanced Lithium-ion Batteries
- Armrests & footrest can be lifted up for the convenience of the user
- Adjustable Controller: Right or left mounting
- Removable Seat Covers for Easy Cleaning
- Electromagnetic brakes engage automatically when joystick is took off and anti-tip on the slope
- Easy switch between manual/electric modes
- Brushless motor with low energy consumption and low noise

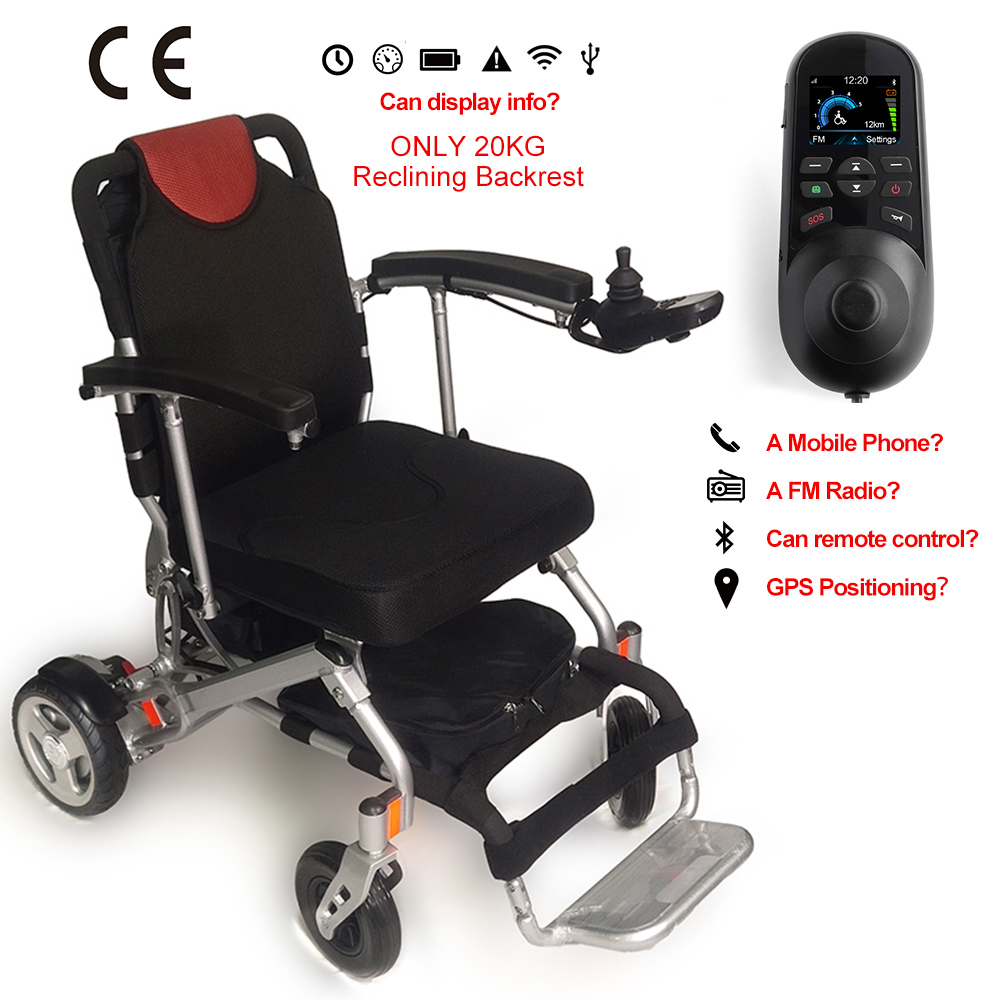

- 2.4'' display screen with visual operation interface
- SOS Function: just press “SOS” button on the joystick to call the preset emergency numbers.
- FM Radio: Enjoy music or favorite programs in the parks or any other places.
- Remote Control: Use iWheelchair APP to remote control the wheelchair.
- Real Time Display: Needn’t see the watch or mobile, easy to know the time.
- Real Time Remained Drive Distance Display: Let you know the remained distance the wheelchair can drive to make you arrange your trip accordingly.
- GPS Positioning(Optional)
| Brand | HEDY | SEW03 |
| Material | 6061 Aluminum Alloy | |
| Unfolded Dimension(LxWxH) | 970x580x870mm | 38.2x22.8x34.3inch |
| Folded Dimension(LxWxH) | 710x580x310mm | 28x22.8x12.6inch |
| Packing Dimension(LxWxH) | 700x430x860mm | 27.6x17x33.9inch |
| Width of Armrests | 460mm | 18.1" |
| Seat Width | 430mm | 16.9inch |
| Seat-to-Floor Height | 500mm | 19.7inch |
| N.W.(Without battery) | 18kg | 39.7bs |
| Gross Weight | 20kg | 44.1lbs |
| Max Speed | 6km/h | 3.75mph |
| Load Capacity | 120kg | 264.6lbs |
| Motor | DC Brushless Motor | 200Wx2pc |
| Battery | Lithium Battery | 24V 288WH |
| Capacity | 12AH | |
| Battery Weight | 1.8kg | 4lbs |
| Driving Range | 20km | 12.4miles |
| Tires | Front Tires: 7" PU | Rear Tires: 8.5" PU |
| color | Silver, Golden | |
| Turning Radius | 860mm | 33.9inch |
| Grade Ability | 9° |
-
The wheelchair is for indoor use or outdoor use?
It's suitable for both indoor and outdoor use thanks for its both superb indoor manoeuvrability and outstanding outdoor performance.
-
Can the wheelchair be taken on board (the airplane)?
Yes, it can be taken on board since our battery is MSDS certified and with 10AH capacity.
-
What is the life span of the battery?
The battery can be filled and released for 600-800 times.
-
Can I take overseas trip with this wheelchair?
Yes, it's your perfect companion on your trip because it's lightweight, portable and foldable.
-
How about the warranty?
1). 3 months for cushion and tires
2). 12 months for motor and controller
3). 18 months for battery
4). 36 months for frame -
Can you do ODM or OEM?
Yes, we can provide ODM and OEM services as long as the quantity reaches our MOQ.
