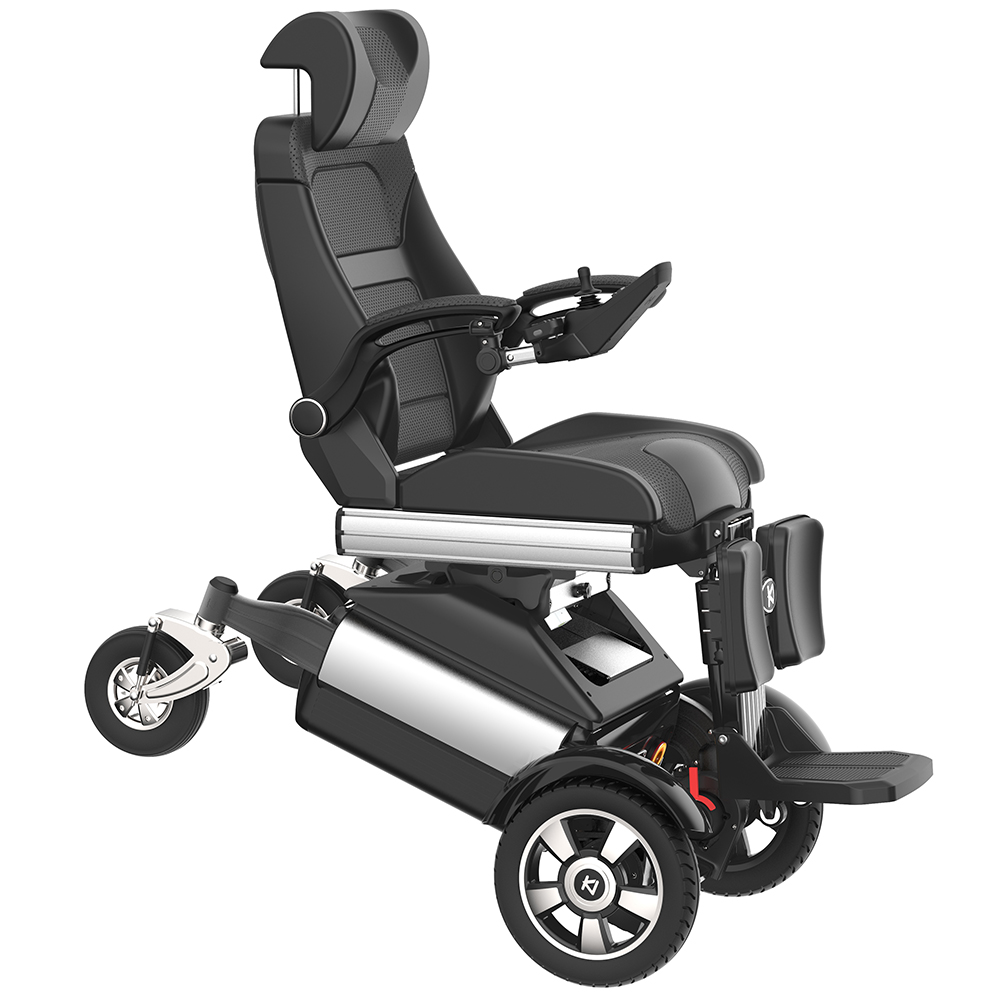

MEW01 Multi-function Electric Wheelchair
Brand: HEDY Model: MEW01
| Brand: HEDY | Model: SEW01 | Controller: HEDY | Motor: Brushless |
| Battery: Lithium | Frame Material: 6061 Aluminum Alloy | Load Capacity: 120 KG | Driving Range: 20 KM |
| Speed: 7KM/H | Grade Ability: 10° | Net Weight: 28KG | Rear Tires: 10" PU |
- Multi-function electric wheelchair
- 12" driving wheels
- Advanced Lithium-ion Batteries
- Adjustable Controller: Right or left mounting
- Removable Seat Covers for Easy Cleaning
- Electromagnetic brakes engage automatically when joystick is took off and anti-tip on the slope

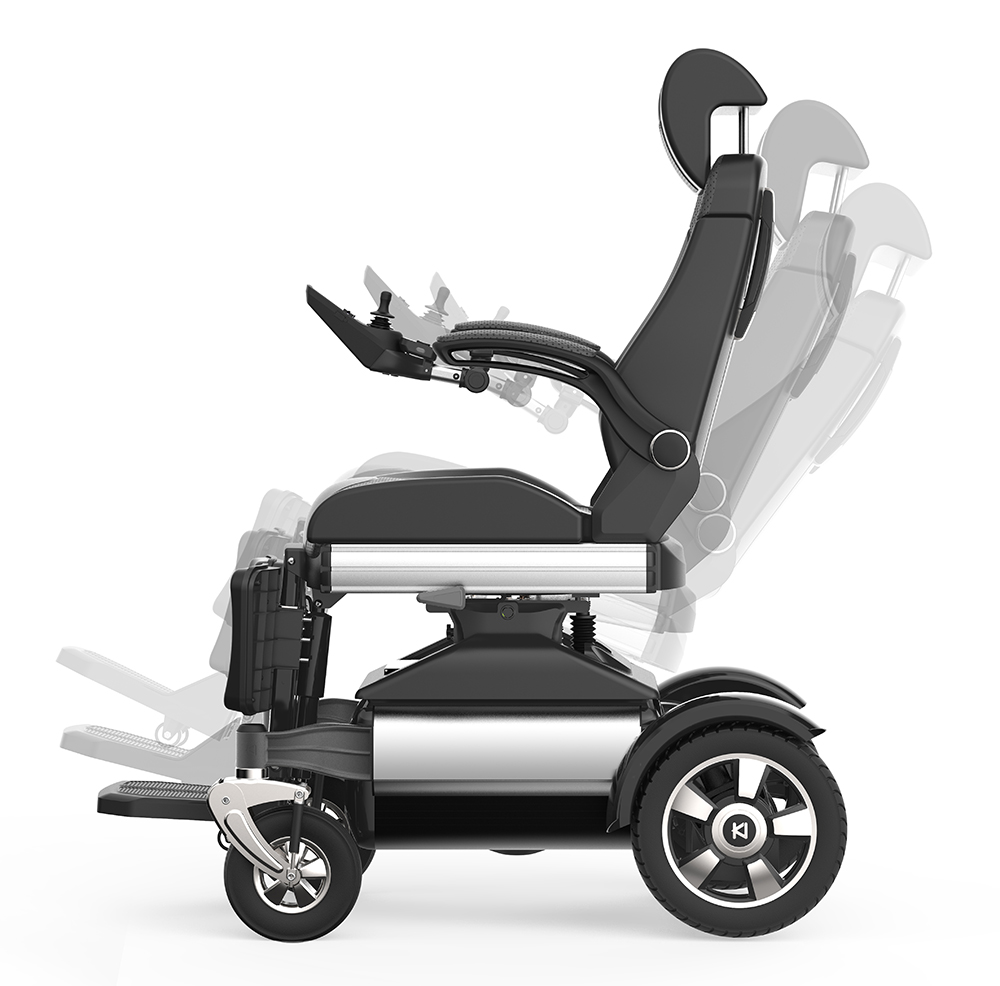

- Backrest Angle Adjustable
- Seat Angle Adjustable

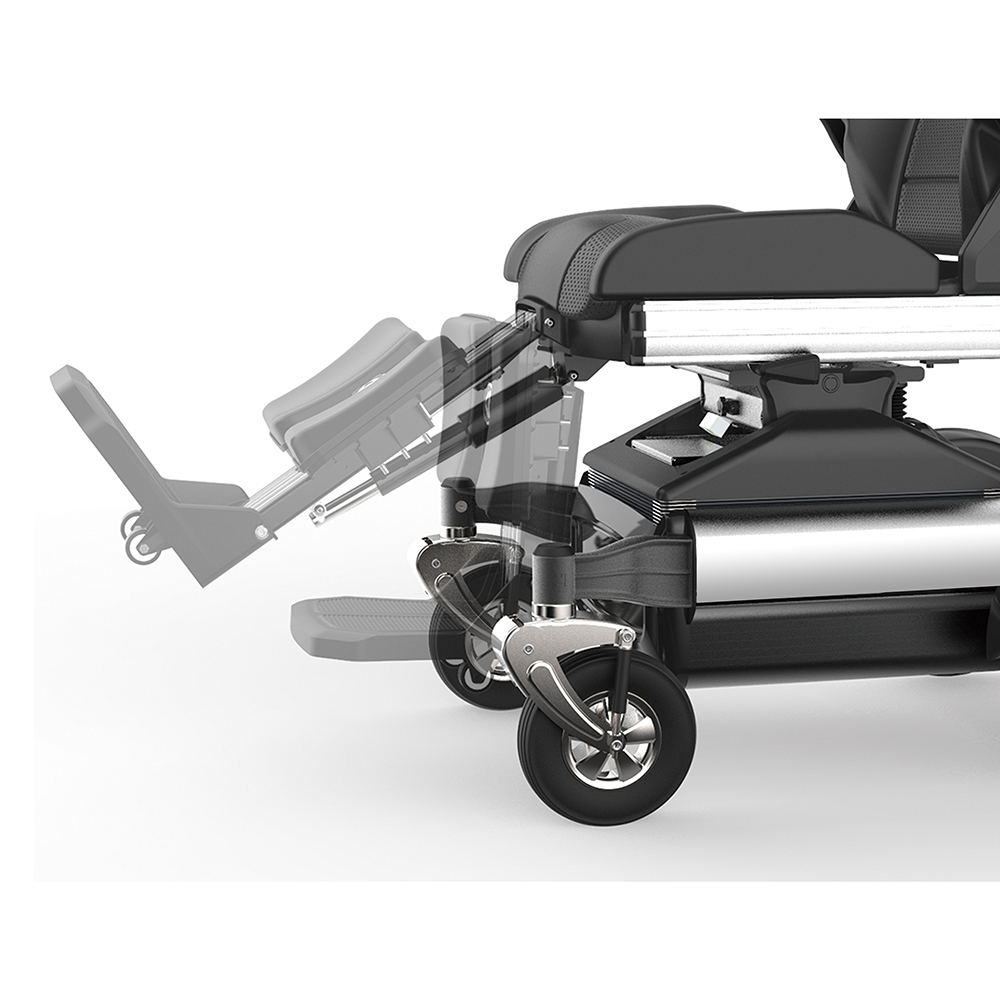

- Pedal Length/Angle Adjustable
- Power Seat Lifting
- Sitting/Standing Assistance
- Seat Rotation
- Ramp Auto Balance
- Leisure Lift
- Provide Superb Comfort and Freedom
| Brand | HEDY | MEW01 |
| Dimension(LxWxH) | 1157x675x1141mm | 45.6x26.6x44.9inch |
| Seat Width | 500mm | 19.7inch |
| Seat-to-Floor Height | 570mm | 22.4inch |
| Obstacle Crossing Ability | 80mm | 3.2inch |
| Trench Crossing Ability | 100mm | 3.9inch |
| Packing Carton(LxWxH) | 1065X797X955mm | 41.9x31.4x37.6inch |
| Gross Weight | 89kg | 196.2lbs |
| Max Speed | 6km/h | 3.75mph |
| Load Capacity | 120kg | 264.6lbs |
| Turning Radius | 1200mm | 47.2inch |
| Motor | DC Brushless Motor | 250Wx2pc(500W) |
| Battery | Lithium Battery | 24V |
| Capacity | 15AH | 360WH |
| Driving Range | 20km | 12.4miles |
| Charger | Input: 100V~220V,50/60Hz | Output: 24V |
| Charging Time | 4-6H | |
| Wheels | Universal Wheels: 8" | Driving Wheels: 12" |
| Brake | Electromagnetic Brake | |
| Certificatess | CE, ISO9001, ISO13485 | |
| Warranty | 3 months for cushion and wheels 12 months for motor and controller |
18 months for battery 36 months for frame |
-
The wheelchair is for indoor use or outdoor use?
It's suitable for both indoor and outdoor use thanks for its both superb indoor manoeuvrability and outstanding outdoor performance.
-
Can the wheelchair be taken on board (the airplane)?
Yes, it can be taken on board since our battery is MSDS certified and with 10AH capacity.
-
What is the life span of the battery?
The battery can be filled and released for 600-800 times.
-
Can I take overseas trip with this wheelchair?

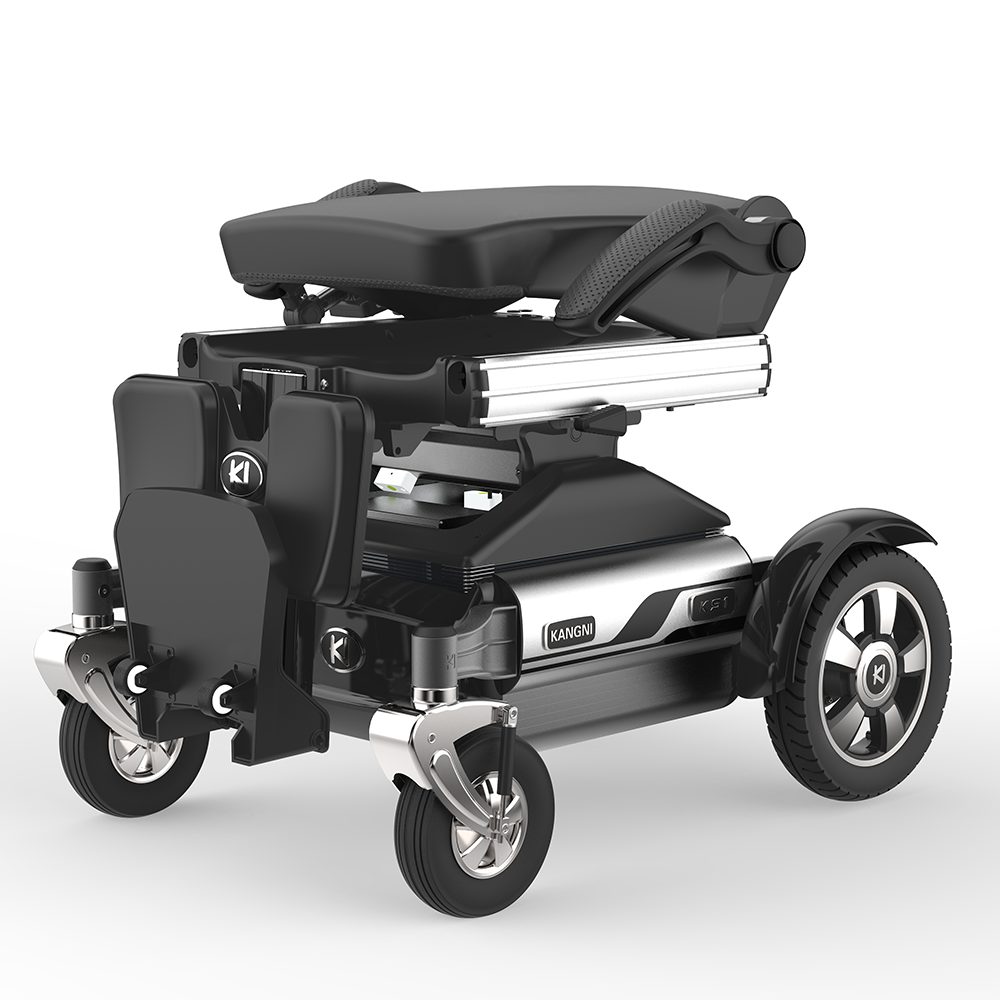

Yes, it's your perfect companion on your trip because it's lightweight, portable and foldable.
-
How about the warranty?
1). 3 months for cushion and tires
2). 12 months for motor and controller
3). 18 months for battery
4). 36 months for frame -
Can you do ODM or OEM?
Yes, we can provide ODM and OEM services as long as the quantity reaches our MOQ.
