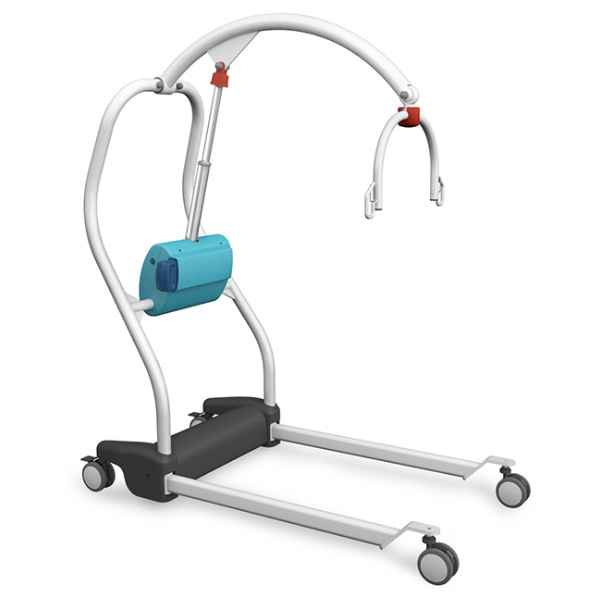

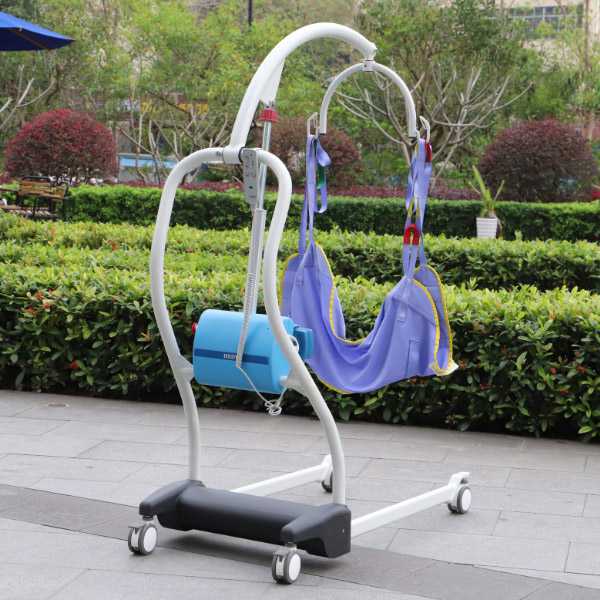

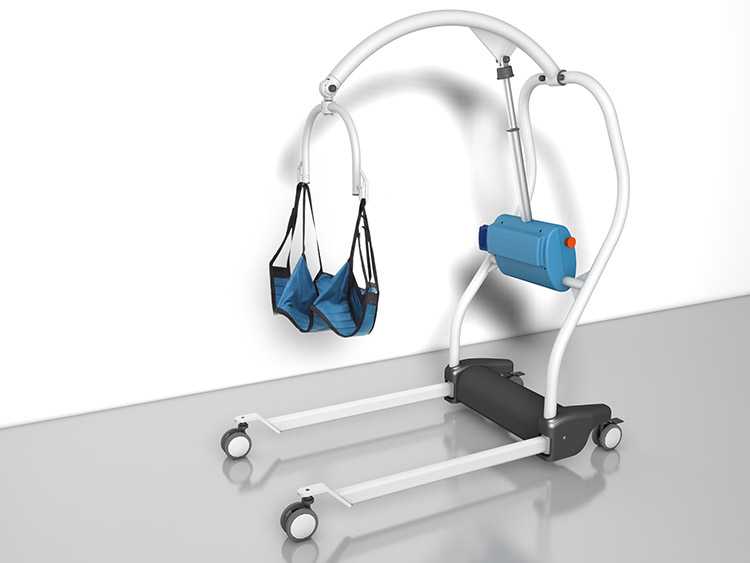

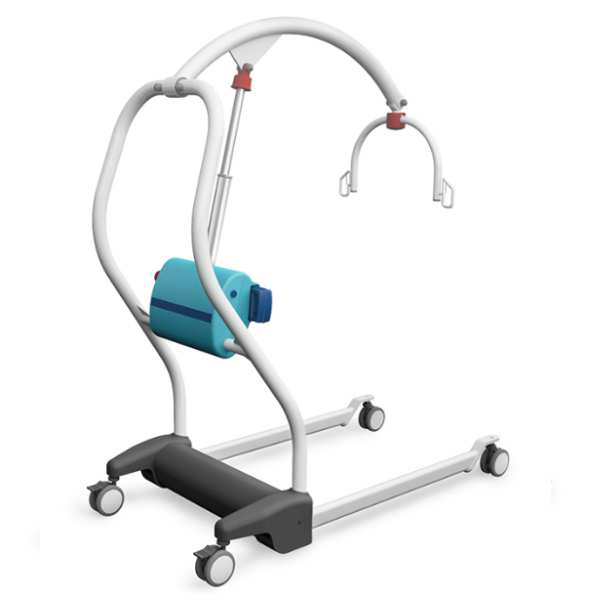

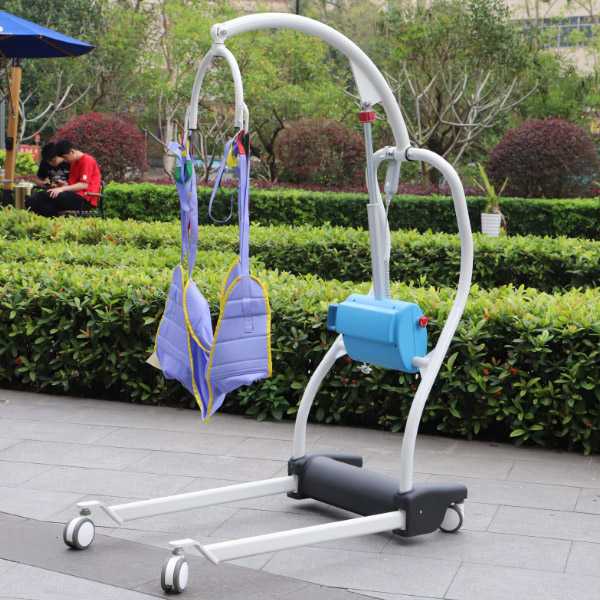

MPL01-Movable Patient Lift
Make patient transfers easier and safer
Brand: HEDY
Safe Working Load: 180 KG
Model: MPL01
Battery: NiMH Battery
Controller: HEDY
Frame Material: carbon steel
Motor Quantity: 2
Frame Color: White
HEDY Movable Patient Lift is intended to be used for persons who:
- sits in a wheelchair;
- has no capacity to support himself/herself;
- cannot stand if unsupported and is not able to bear his/her weight,not even partially;
- is dependent on the caregiver in most situations.
or, for a person who:
- is almost completely bed-ridden;
- is often stiff or have contracted joints;
- is totally dependent on the caregiver.
Feature:
- Strong load bearing 180kg
- Easy operation
- Rear wheel double brake
- Free hands and easily shift
- User-friendly design
- Emergency stop function
- Dual motor control
| Brand | HEDY | |
| Dimension(LxWxH) | 1298x672x1367mm | 51.1x26.5x53.8inch |
| Feet Dimension(LxWxH) | 657x916x145 | 25.9x36.1x5.7inch |
| Feet Open & Close Range | 524-1325 | 20.6x52.2inch |
| C.S.P horizontal distance range from the column | 404-693 | 15.9x27.3inch |
| Lifting Range | 767~1997mm | 30.2~78.6inch |
| Turning Diameter | 1443mm | 56.8" |
| Safe Working Load | 180kg | 400lbs |
| Noise Level | <65dB | |
| Operating Forces Of Controls | 2.7N | |
| Max Lifting Speed | 24mm/s | |
| Motor | Lifting: 24V/8000N | Openging And Closing: 24V/3500N |
| Battery | Ni-MH Battery | 24V 2500mAh |
| Battery Weight | 1.2kg | 2.6lbs |
| Charger | Intput: 100V~220V,50/60Hz | Output: 28V |
| Charging Time | 5~6H | |
| Frame | Carbon Steel | White |
| Certificate | CE, ISO9001, ISO13485 | |
| Warranty | 12 months for Castors, battery, motor and controller | 36 months for frame |
-
What's the main feature of the patient lift?
It's is unlike other passive sling lifters, it has a twin mast design that not only improves stability and weight distribution, but it is also aesthetically pleasing.
-
Does it need special person to operate?
No, it's very easy to operate. It can be easily operated by caretakers or family members after getting used to the basic operation.
-
Which environments are suitable for the patient lift?
It's suitable for care environments such as residential homes, nursing homes and specialist care facilities.
-
What's the safe working load?
180KG.
-
Can you do OEM or ODM?
Yes, we can provide OEM or ODM services as long as your quantity can reach our MOQ.
