FEW04 Foldable Electric Wheelchair
Lightweight, Foldable, Portable
| Brand: HEDY | Model: FEW02 | Controller: Top brands | Motor: Brushless |
| Battery: Lithium | Frame Material: 6061 Aluminum Alloy | Load Capacity: 120 KG | Driving Range: 20 KM |
| Speed: 6KM/H | Grade Ability: 12° | Net Weight: 28KG | Rear Tires: 12" PU |
- Foldable electric wheelchair
- 12" PU Rubber pneumatic
- Advanced Lithium-ion Batteries
- Armrests & footrest can be lifted up for the convenience of the user
- Adjustable Controller: Right or left mounting
- Electromagnetic brakes engage automatically when joystick is took off and anti-tip on the slope
- Automatic Fold & Unfold(Optional)
- Electric recline & lie down(Optional)
- Remote Control(Optional)
- With USB Charging port on the joystick
| Brand | HEDY | FEW02 |
| Material | 6061 Aluminum Alloy | |
| Unfolded Dimension(LxWxH) | 1100x630x960mm | 43.3x24.8x37.8inch |

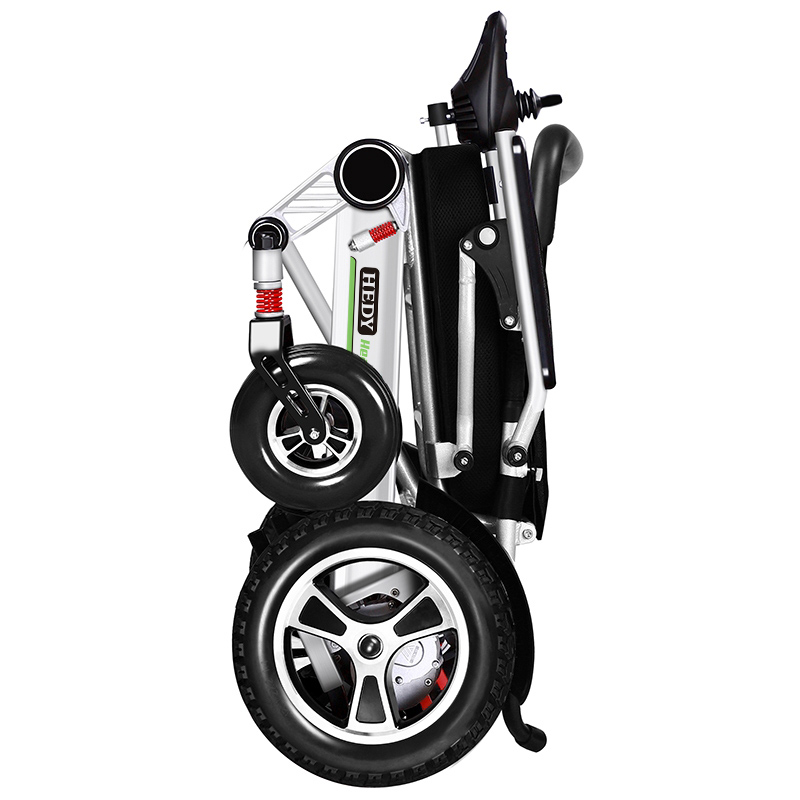

| Folded Dimension(LxWxH) | 610x320x780mm | 24x12.6x30.7inch |
| Packing Dimension(LxWxH) | 650x380x790mm | 25.6x15x31.1inch |
| Width of Armrests | 460mm | 18.1" |
| Seat width | 450mm | 17.7inch |
| Seat-to-Floor Height | 487mm | 19.2inch |
| N.W.(Without battery) | 26kg | 57.3lbs |
| Gross Weight | 28kg | 61.7lbs |
| Max Speed | 6km/h | 3.75mph |
| Load Capacity | 120kg | 364.6lbs |
| Motor | Brush Motor | 250Wx2pc |
| Battery | Lithium Battery | 24V 240WH |
| Capacity | 13AH | 26AH(optional) |
| Battery Weight | 2kg | 4.4lbs |
| Driving Range | 20km | 12.4miles |
| Tires | Front Tires: 8" PU | Rear Tires: 12" PU |
| Color | Silver, Golden, Black, etc. | |
| Turning Radius | 850mm | 33.5inch |
| Grade Ability | 12° |
-
The wheelchair is for indoor use or outdoor use?
It's suitable for both indoor and outdoor use thanks for its both superb indoor manoeuvrability and outstanding outdoor performance.
-
Can the wheelchair be taken on board (the airplane)?
Yes, it can be taken on board since our battery is MSDS certified and with 10AH capacity.
-
What is the life span of the battery?
The battery can be filled and released for 600-800 times.
-
Can I take overseas trip with this wheelchair?
Yes, it's your perfect companion on your trip because it's lightweight, portable and foldable.
-
How about the warranty?
1). 3 months for cushion and tires
2). 12 months for motor and controller
3). 18 months for battery
4). 36 months for frame -
Can you do ODM or OEM?
Yes, we can provide ODM and OEM services as long as the quantity reaches our MOQ.
